The LInX to LInX Report query allows a System Administrator to see which remote agencies and/or Partner Systems have been accessing their system’s data in the LInX warehouse (Incoming Report); or which agencies and/or Partner Systems have been accessed by users of the local system (Outgoing Report).
This functionality is intended for administrators who have the authority to review agency and user activity in the LInX system. The determination of which users will have access to security administration functions is controlled by each individual agency.
This report provides LInX administrators with important data to help the System Administrator better understand how the system is being used.
Authorized users can access the LInX to LInX Report either from the View Reports title page, or from the menu bar located along the left side of the screen.

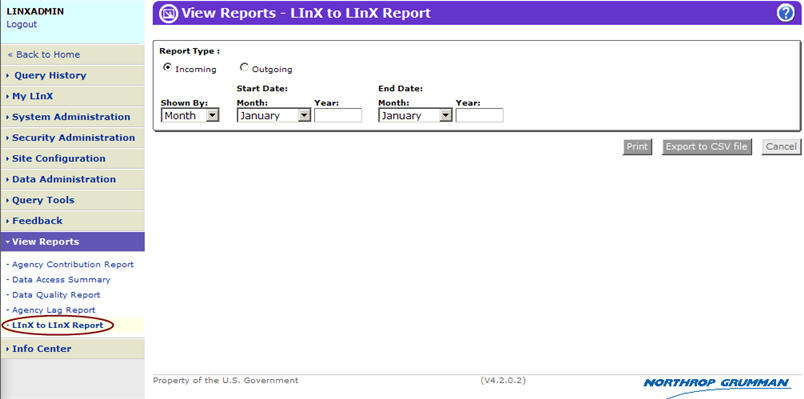

When LInX to LInX Report is selected, the following screen appears:
Entering a liNx to linx report Query
The following fields are used as the search criteria for the LInX to LInX Report. All fields are required.
Ø Report Type (Incoming or Outgoing)
Ø Interval Period (Month/Quarter/Year)
Ø User ID (if the access log is to be filtered for a single user)
Ø Start Date (start date of the desired report period)
Ø End Date (end date of the desired report period)
The report can be grouped by calendar Month, Quarter or Year intervals. The maximum number of columns in the report is limited to 12 columns, to cover the number of calendar months in a year. The report requires at least one interval, but not more than twelve (12) intervals.
The Month interval can be up to 12 consecutive months, and spread across two calendar years.
The Quarter Interval can be up to 12 consecutive quarters, and spread across four calendar years.
The Year interval can be spread over 12 consecutive years.
After all search criteria have been entered, click the Print button to generate a PDF version of the report, or the Export to CSV file button to generate a comma separated file of the report. The Cancel button will return the user to the Home page.
The LInX to LInX Report can be saved and/or printed in accordance with agency policies and the LInX Rules of Operations.
LINX TO LINX REPORT RESULTS

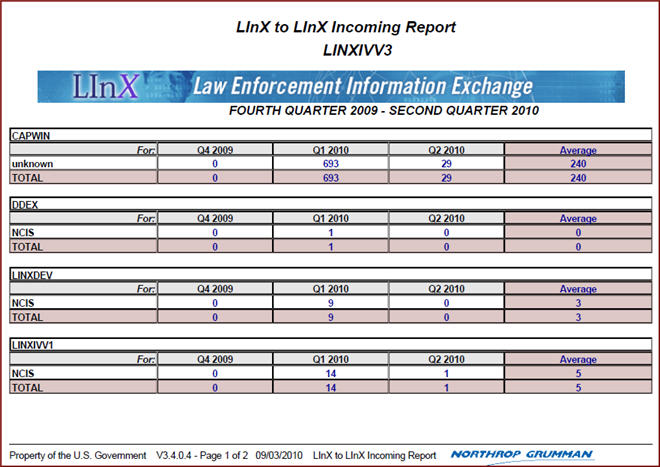

Here is an example of a LInX to LInX Incoming Report for Fourth Quarter 2009 to Second Quarter 2010:
The top half of the report contains the following information:
Report Type (Incoming or Outgoing)
The name of the system for which the report was run
The report period
A row for each remote Site and Agency, listed alphabetically, that accessed the system during the report period
A column for each interval (up to 12), containing the total number of queries made by each remote Site/Agency for the specified interval, and the total number of queries per interval
A column containing an Average of the number of queries made by each remote Site/Agency, divided by the number of intervals in the report period, for each remote Agency/Site that accessed the system
A TOTAL row containing the total number of queries per interval

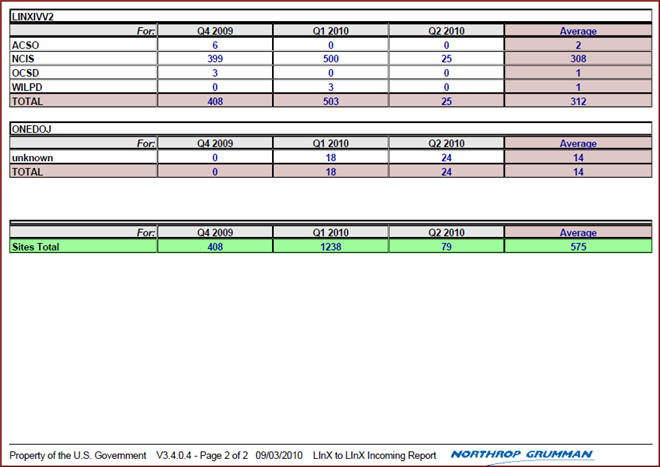

The bottom half of the report contains the following information:
Report Type (Incoming or Outgoing)
The name of the system for which the report was run
The report period
A row for each remote Site and Agency, listed alphabetically, that was accessed by the local system during the report period
A column for each interval (up to 12), containing the total number of queries made to each remote Site/Agency for the specified interval, and the total number of queries per interval
A column containing an Average of the number of queries made to each remote Site/Agency, divided by the number of intervals in the report period, for each remote Agency/Site that was accessed the system
A TOTAL row containing the total number of queries per interval
Analytical users should contact their System Administrator or Agency Administrator when they are having problems accessing or using LInX. Only System Administrators are authorized to contact the LInX Help Desk.
